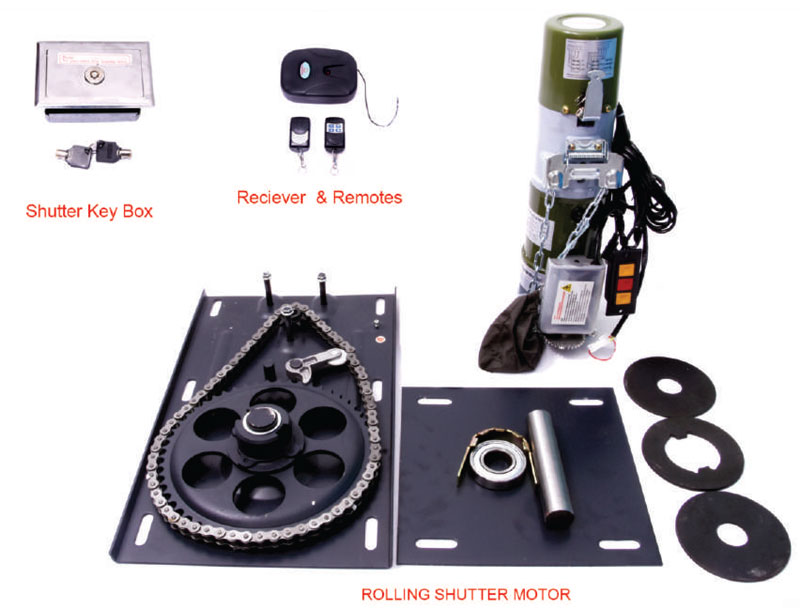

Rolling Shutter Motor - Maxwell

We are authorised dealer of Maxwell Shutter Motor and offering Rolling Shutter Motor to our clients. These are designed and manufactured by inculcating advanced tools and technology using optimum quality raw material. These are available in the market at affordable prices.

FEATURES
Side Motor600/1000/1500/2000Sim

  • Suitable for all kinds of roller shutter door
  • Low noise operation
  • Reliable performance, stable and safe
  • Location accuracy less than 1.5 limiter
  • Roller shutter door may be opened and closed by remote controller
  • According to lifting capacity, range from 300KG, 600KG, 800KG, 1000KG, 1300KG, 1500KG, 2000KG
  • Accessories: Chain.Gear.Chain Plate, Driving plate, Brac, ket for bearing, Shaft, End Plate.

TECHNICAL DATA

Model Input
Volatage
(V)		 Input Power
(W)		 Output
Torque (N.m)		 Max Lift (kg) Rotate Speed
(r/min)		 Max Operating Range
Range (Height in m)		 Chian (ANSI Standard)
RS 600 -1 P 220 565 410 600 6.5 6 10A
RS 1000 -1 P 220 700 710 1000 5.5 9 12A
RS 600 - 3 P 380 290 410 600 6.5 6 10A
RS 1000 - 3 P 380 400 870 1000 5.5 9 12A
RS 1500 - 3 P 380 180 1600 1500 4.9 9 16A

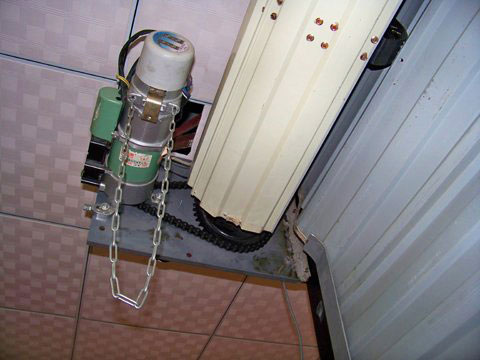

Rolling Shutter Side Motor

Backed by the team of experts and qualified professionals, we are engaged in offering a wide range of Rolling Shutter Side Motor. The Rolling Shutter Side Motor we offer is well designed and is quenched and hardened in state. Moreover, this Rolling Shutter Side Motor is noiseless and is available in standard sizes and specifications. A team of quality detectors stringently checks these products at every step of production till the time of final dispatch.

Features:

  • Highly durable
  • Rust resistance
  • Suitable for industrial use

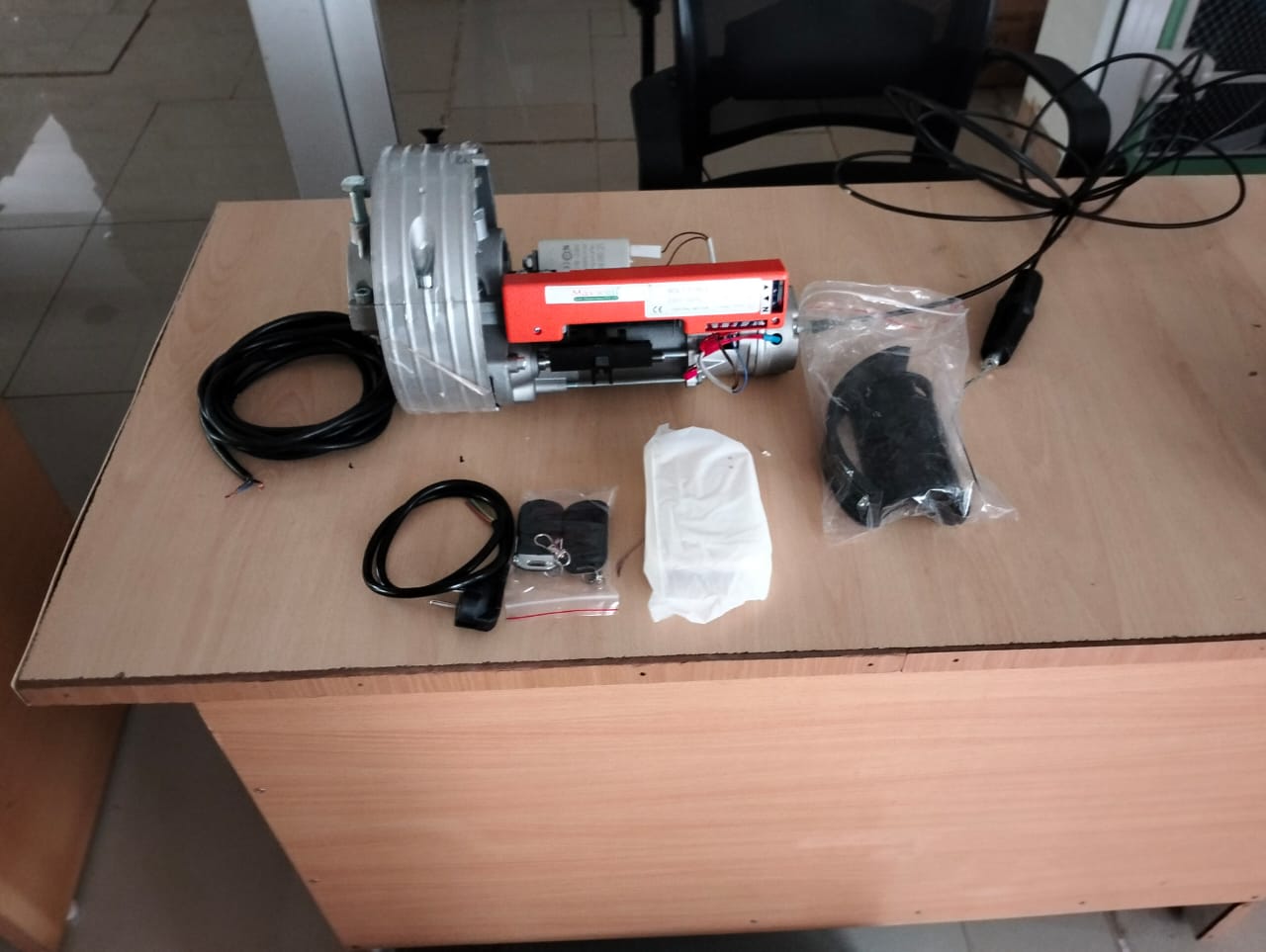

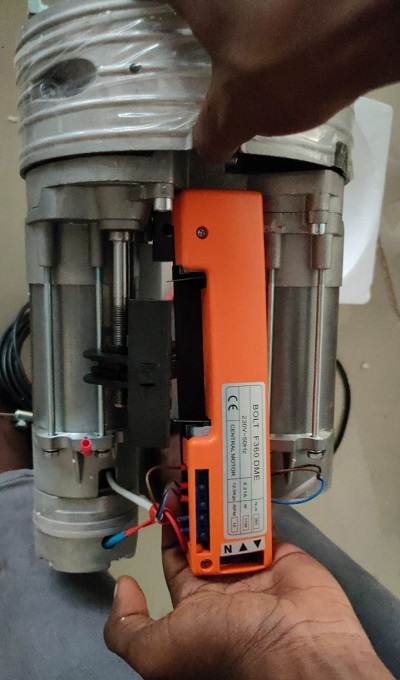

Central Motor Double Cylinder

In the series of our products, we are engaged in offering a wide range of Central Motor with Double Cylinder to meet the needs of our clients. This Central Motor we offer makes less noise and is well known for its attributes such as high tensile strength, superlative performance, easy maintenance and durability. Furthermore, Central Motor is available in different sizes and hardness.

Features:

  • Use the advanced technology
  • Give great output
  • Supreme strength





Central Motor Single Cylinder

Being a well known company, we are engaged in offering a large range of Central Motor Single Cylinder to meet the needs of our clients. Made up of high quality component this Central Motor Single Cylinder is resistant to rust and corrosion. The Motor we offer is extremely rigid in state and ensures long lasting service life. Central Motor Single Cylinder offers excellent performance without hassle or error.

Features:

  • High in demand
  • Reliable
  • Effective

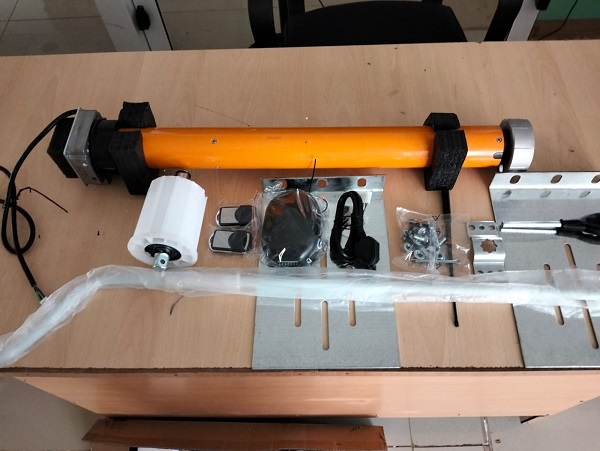

Tubular Motor

Being a well known company, we are engaged in offering a large range of Tubular Motor to meet the needs of our clients. Made up of high quality component this Tubular Motor is resistant to rust and corrosion. The Motor we offer is extremely rigid in state and ensures long lasting service life. The Motor offers excellent performance without hassle or error.

Features:

  • High in demand
  • Reliable
  • Effective

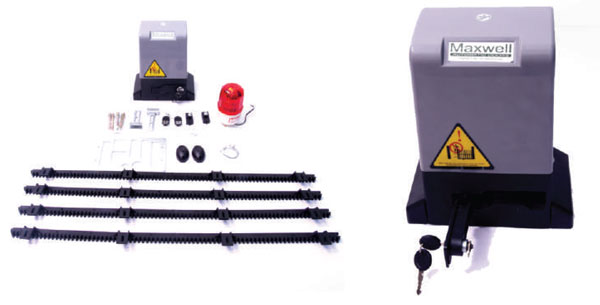

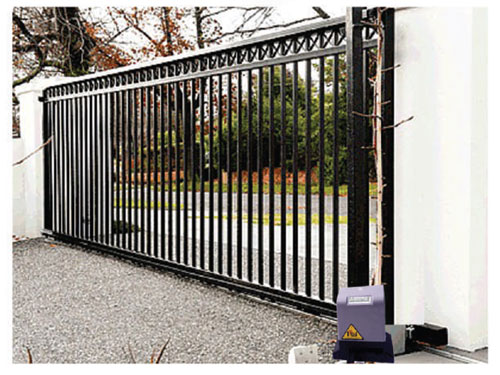

SLIDING GATE MOTOR

FEATURES
Sliding gate motor 800/1200 /1800/2200

  • Suitable for Residential / Intermittent / Industrial
  • Accessible with all type of gates residential / industrial sliding gate, side corner sliding gate, telescopic sliding gate etc,
  • Remote control to open / close the gate
  • Irreversible self-locking operator
  • Safe and Reliable
  • Release key for manual opening
  • Noiseless with control unit
  • Adjustable accessories and brackets.

TECHNICAL DATA

Power Supply 220 VAC 50HZ
Motor Power 370W/550W/750W/900W
Stating Current 3A
Maximum Door weight 800 KG/1200 KG/1800KG/2200KG
Motor Speed 1400 r/min
Running Speed 12m/min
Gear Module 150 Nm
Operating Temperature -25°C-+55°C

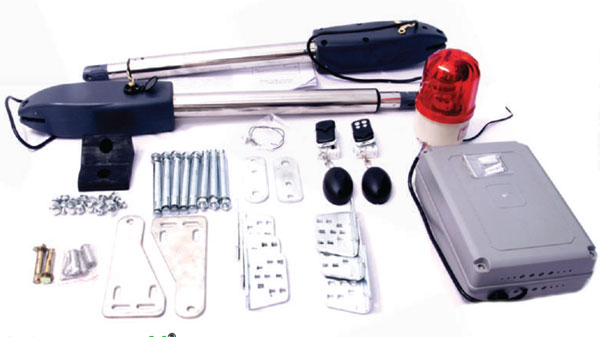

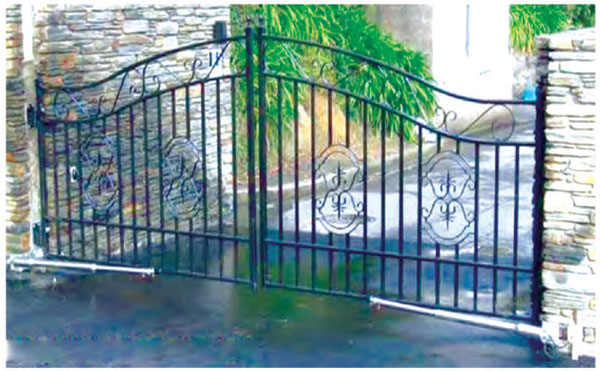

SWING GATE MOTOR

FEATURES
Automatic swing gate operator with encoder, complete with electronic control unit and built-in 433,
92 MHz rolling code radio receiver. Maximum gate weight 400 - 4000 kg for residential and industrial gates.

  • Guide-grease lubrication system
  • Built-in-heat guard
  • Powder Coated
  • Remote control to open / close the gate
  • The locked version ensures the gate locking without an electric-lock, and it comes with a release key.
  • The perfect integration of its components ensures lowest noise levels

TECHNICAL DATA

Power Supply 220 V/110 V
Motor Power 24 VDC
Stating Current 5A
Maximum Leaf weight 400 KG - 4000 KG
Maximum Leaf Width 2.5 m - 3.5 m
Motor Speed 100 rpm
Running Speed 2.5 cm/s
Protection Degree IP 55
Operating Temperature -20°C - +50°C

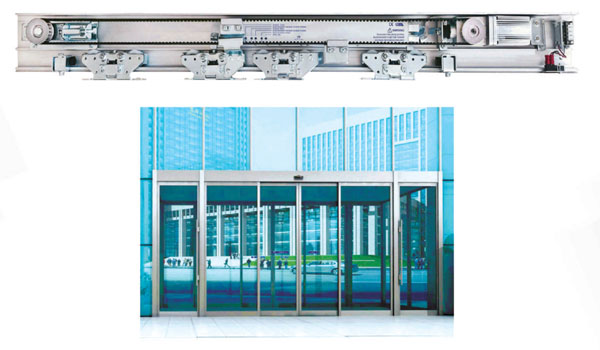

AUTOMATIC SLIDING DOOR MOTOR

FEATURES
Smoothly running, quiet, reliable, high pass rate, good sealing performance, energy saving, simple maintenance, widely used in hotels, restaurants, office building. Banks, government institutions, shopping malls, hospitals, and villas.





TECHNICAL DATA

Power Supply 90V Ac-240 Vac;50/60Hz
Motor Power 120 W
Standby Power 5 W
Loading weight 20 kg-100 Kg
Door width 600-1100 mm
Opening Speed 200- 500 mm/s (adjustable)
Closing Speed 200- 500 mm/s (adjustable)
Opening Time 1-lOs (adjustable)
Operating Temperature -0°C - +40°C
Protection Level IP 20
Noise LpA <=55dB(A)
